HORIZONTAL BAND SAW

HORIZONTAL BAND SAW

FULLY AUTOMATIC CIRCULAR SAW MACHINE

Since our inception, we are involved in manufacturing and supplying a qualitative range of Fully Automatic Band Saw Machines. These Horizontal band-saw machines are featured with two vertical liner guide ways for cutting arms, which are operated by the hydraulic cylinders. Available in different cutting capacities, band speeds, blade dimensions and motor capacities, our machines are designed using PLC automation technique. Our offered Fully Automatic Band Saw Machines are appreciated for their hydraulic operation, optimum performance, rigid body construction and longer functional life.

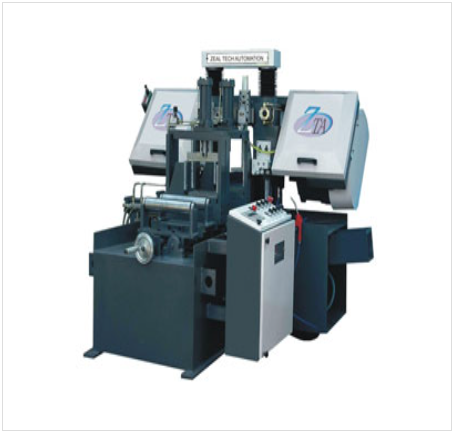

Fully Automatic Horizontal Band Saw Machine

CONSTRUCTION/FUNCTIONAL DETAIL OF FULLY AUTOMATIC BAND SAW MACHINE:

• Torsion free construction of Heavy duty Fabricated Structure of Machine.
• Main Saw frame guided in two nos. Vertical Liner Guide Ways or Hardened Ground and Hard chrome plated columns.
• Infinitely variable controlled cutting feed.
• Rapid Up – Down movement of Cutting Arm by Hydraulic cylinders.
• Auto height stop arrangement of cutting Arm after completion of cut.
• Cutting Tool (Blade) guided on the two wheel of graded cast Iron.
• Tungsten Carbide faces Blade Guides.
• Hydraulic Operated Blade Tensioning Arrangement.
• Hydraulic Operated job Clamping Main Vice and Shuttle Vice.
• Hydraulic Shuttle table arrangement for Automatic Indexing.
• Heavy duty reduction Gearbox for heavy cutting torque.
• Automatic machine stop when blade breaks.
• Inbuilt coolant tank with three way cooling arrangement.
• Chips removing wire brush arrangement for cleaning of blade.
• Separate Hydraulic Power pack with all control valves, gauges & Oil level Indicator for easy check & maintenance.
• Electrical Control Panel with PLC and high quality switch gears.
• Provision of length setting through Digital “Siko Meter”.
• Step Pulley with V-Belts for various band speed

OPTIONAL SUPPLY:



• VFD for various band speeds.
• Hand Lubrication pump.
• Automatic centralized Lubrication System.
• Motorized Automatic Scrap Removal Conveyor arrangement.
• Motorized Chips removing wire brush Assembly.
• Machine lamp.
• Job Supporting Roller Table
• Hydraulic Bundle Cutting Arrangement
• Micro Mist Cooling Arrangement for Blad

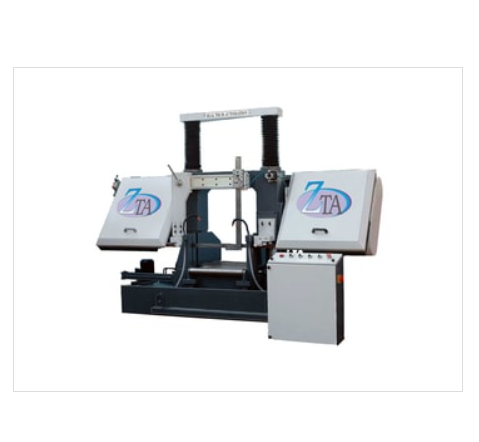

SEMI AUTOMATIC BAND SAW MACHINES

Leveraging on our vast industry experience, we bring forth for our clients a wide range of Semi Automatic Bandsaw Machines. Designed with international quality standards, thes heavy duty band-saw machines are featured with Hydraulic Operated Up Down Movement, Hydraulic Clamping and Blade Tensioning arrangements and two high-precision Carbide Faces Guides. Clients can procure these machines in different dimensions, motor capacities and band speeds as per their requirements. Our offered Semi Automatic Bandsaw Machines are known for the following features –

• Torsion-free construction
• Hydraulic operations
• High efficiency
• Longer service life
• Low maintenance cost.

CONSTRUCTION/FUNCTIONAL:

• Torsion free construction of Heavy duty Fabricated Structure of Machine.
• Main Saw frame guided in two nos. Vertical Liner Guide Ways or Hardened Ground and Hard chrome plated columns.
• Infinitely variable controlled cutting feed.
• Rapid Up – Down movement of Cutting Arm by Hydraulic cylinders.
• Auto height stop arrangement of cutting Arm after completion of cut.
• Cutting Tool (Blade) guided on the two wheel of graded cast Iron.
• Tungsten Carbide faces Blade Guides.
• Hydraulic Operated Blade Tensioning Arrangement.
• Hydraulic Operated job Clamping Main Vice.
• Heavy duty reduction Gearbox for heavy cutting torque.
• Automatic machine stop when blade breaks.
• Inbuilt coolant tank with two way cooling arrangement.
• Separate Hydraulic Power pack with all control valves, gauges & Oil level Indicator for easy check & maintenance.
• Step Pulley with V-Belts for various band speed.

OPTIONAL SUPPLY:

• VFD for various band speeds.
• Hand Lubrication pump.
• Automatic centralized Lubrication System.
• Motorized Automatic Scrap Removal Conveyor arrangement.
• Motorized Chips removing wire brush Assembly.
• Machine lamp.
• Job Supporting Roller Table
• Hydraulic Bundle Cutting Arrangement
• Mechanical Length Setting Stopper.
• Micro Mist Cooling Arrangement for Blade.
